1500W Fiber Laser Welding Machine
This is 1500W Fiber Laser Welding Machine. It is widely used for the metal welding. The machine is good quality and the welding precision is high. Welding speed is fast, 2-3 times faster than traditional welding. Smooth and beautiful weld, without secondary treatment, saving time and cost.
Model:CX-[1500W
Send Inquiry
Product Description
Laser welding machine Fearture:
1.Welding speed is fast, 2-3 times faster than traditional welding
2.Welding consumables are less, long life, safer and environmental protection
3.Smooth and beautiful weld, without secondary treatment, saving time and cost
4.Welding work piece has little thermal influence and no deformation
5.Swing the laser head, the beam can be adjusted 0.5-6mm, which makes up for the disadvantage of small spot of laser welding, expands the tolerance range and weld width of processing parts, and obtains better weld forming

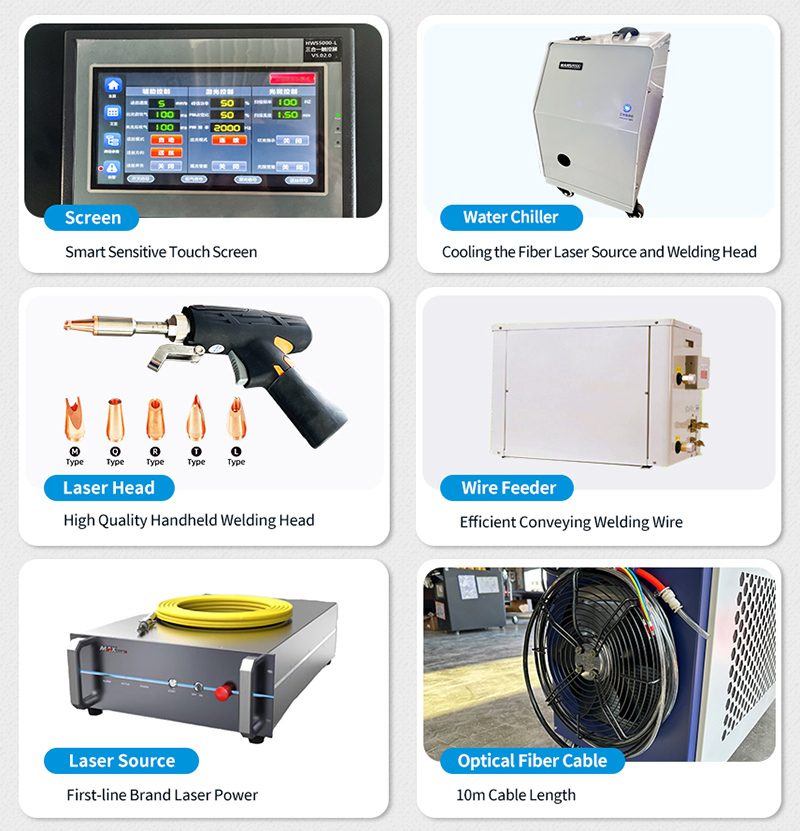

Detail Image:
Technical Parameters:
|
Model |
1500W |
1500W |
|
Laser Source |
Reci |
Raycus |
|
System |
WSX WD23 |
SUP21T |
|
Laser Head |
WSX 3 in 1 |
Chaoqiang 3 in 1 |
|
Weight |
252KGS |
440KGS |
|
Package Size |
L700*W350*H670mm |
L950*W530*H670mm |
|
Laser Source |
Laser wavelength |
1070nm |
|
Maximum laser output power |
1500W |
|
|
Number of fiber optic outputs |
Single |
|
|
Light output mode |
continuous |
|
|
Fiber length |
10m |
|
|
Fiber bending radius |
200mm |
|
|
Power consumption of the entire machine |
≤5kW |
|
|
Overall power stability |
±1% |
|
|
Electricity demand |
220V/50/60Hz |
|
|
Operating temperature range |
10—40℃ |
|
|
Laser water cooling temperature range |
25-28℃ |
|
|
Cooling method |
Water cooling |
|
|
Weight of handheld laser welding head |
≤1kg |
|
|
Aiming and positioning |
Red light indication |

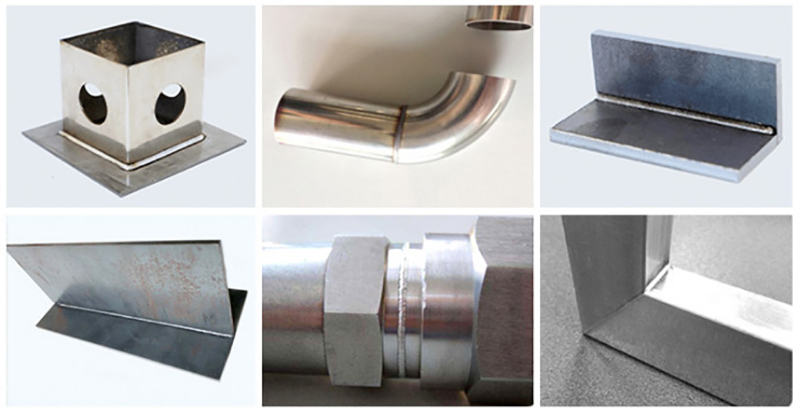

It is widely used for the metal welding.
