Handheld laser welding/cleaning/cutting machine

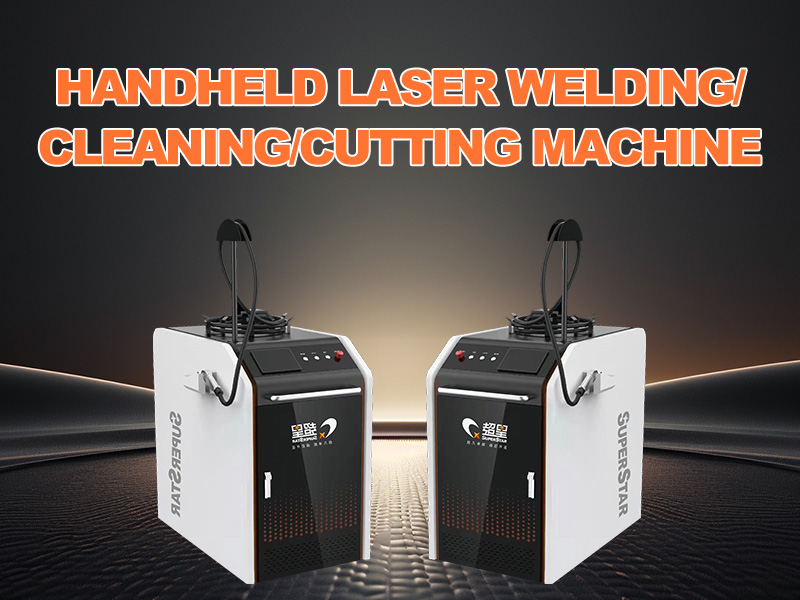

Handheld laser welding/cleaning/cutting machine.This is 1500W Fiber Laser Welding Machine. It is widely used for the metal welding. The machine is good quality and the welding precision is high. Welding speed is fast, 2-3 times faster than traditional welding. Smooth and beautiful weld, without secondary treatment, saving time and cost.
Model:CX-1500
Send Inquiry
Product Description
Handheld laser welding/cleaning/cutting machine
Product Introduction
The "Laser Handheld Welding Machine" consists of an integrated cabinet, fiber laser, cooling water circulation system, laser control system, and a handheld welding head.
This product is widely used in complex and irregular welding processes in industries such as cabinets, kitchens, building elevators, shelves, boilers, stainless steel door and window guardrails, distribution boxes, stainless steel furniture, etc., perfectly replacing traditional argon arc welding.
Equipment features
Four IN One Welding/Rust Cleaning/Cutting/Seam cleaning
Integrated cabinet with unique advantages such as small footprint, flexible mobility, and strong functionality;
Handheld single swing welding joint, equipped with 5m-10m optical fiber QBH cable;
Flexible application, able to meet various welding needs;
Handheld operation mode, equipped with a dedicated welding nozzle, can weld any part of the workpiece at any angle;
Equipped with a dual drive wire feeding mechanism, it can deliver welding wires of 0.8 to 1.6 specifications to solve large gap welding;
Suitable for various process requirements of workpieces, welded in one formation, with small deformation, meeting the requirements of high-quality products;
Beautiful welds, no welding scars, and no need for subsequent polishing;
Welding is firm, and the strength of the weld seam reaches or even exceeds that of the wood itself;
Suitable for butt welding, overlap welding, internal and external corner welding, circular arc welding, irregular shape welding, etc;
Exclusive laser safety operation protection function to ensure the safety of operators during work;
Fast welding speed, 3-4 times faster than traditional welding, and one machine can save at least 2 welders per year;
Easy to learn and quick to get started in operation, with low technical barriers for operators and lower labor costs;
Multi language operating software.
|
Input power |
220V±10% AC 50/60Hz |
|
Installation environment |
Flat,No vibration and impact |
|
Working environment temperature |
10～40℃ |
|
Working environment humidity |
＜70% |
|
Cooling method |
Water cooling |
|
Applicable wavelength |
1064nm（±10nm） |
|
Applicable power |
≤3000W |
|
Collimation |
D16*4.5/F60 |
|
Focusing |
D20*4.5/F150 |
|
Reflex |
30x14xT2 |
|
Protective mirror |
D18*T2 |
|
Maximum air pressure |
15Bar |
|
Vertical adjustment range of focus |
±10mm |
|
Scan width for welding |
Standard0~6mm (Available0~8mm) |
|
Scan width for cleaning |
F150-0~30mm |
|
F400-0~70mm |
|
|
F800-0~120mm |
|
|
Head Weight |
0.75kg |
Configuration
|
NO. |
Name |
Manufacturer |
|
1 |
Laser source |
Reci |
|
2 |
Water-cooled machine |
Hanli |
|
3 |
Welding head |
Sup 21T/23T |
|
4 |
Control system |
Chaoqiang |
|
5 |
Wire feeder |
Chaoqiang |
Parameters
|
Laser Source |
Laser wavelength |
1070nm |
|
Maximum laser output power |
1500W/2000W/3000W |
|
|
Number of fiber optic outputs |
Single |
|
|
Light output mode |
continuous |
|
|
Fiber length |
10m |
|
|
Fiber bending radius |
200mm |
|
|
Power consumption of the entire machine |
≤5kW |
|
|
Overall power stability |
±1% |
|
|
Electricity demand |
220V/50/60Hz |
|
|
Operating temperature range |
10—40℃ |
|
|
Laser water cooling temperature range |
25-28℃ |
|
|
Cooling method |
Water cooling |
|
|
Weight of handheld laser welding head |
≤1kg |
|
|
Aiming and positioning |
Red light indication |
|
|
Water chiller |
Refrigerant |
R32A |
|
Circulating water filtration accuracy |
50um |
|
|
source |
220V/60Hz |
|
|
Running noise |
<70dB |
|
|
Operating temperature range |
10-35℃ |
|
|
Automatic protection/alarm function |
Temperature, flow rate, liquid level |
Packing list
|
NO. |
Name |
QTY |
Note |
|
1 |
Laser welding machine |
1set |
Power(kw)：≤5 |
|
2 |
Spare protective lenses |
5pieces |
18X2 |
|
3 |
Welding copper nozzle |
1box |
|
|
4 |
Wire feeding nozzle |
4pieces |
0.8,1.0,1.2,1.6 |
|
5 |
Goggles |
1set |
|
|
6 |
Wire feeder |
1set |
|
|
7 |
Wire feeding tube |
1piece |
|
|
8 |
Wire feeding wheel |
4pieces |
2 on machine,2 for prepare |
|
9 |
Network cable |
1piece |
|
|
10 |
232 serial port cable |
1piece |
|
|
11 |
USB to 232 serial cable |
1piece |
|
List of Vulnerable Parts
|
No. |
Name |
Model |
Unit |
Suggested replacement frequency (unit/week) |
Manufacturer |
|
1 |
Protective lens |
18*2 |
piece |
Based on usage |
customization |
|
2 |
Welding copper nozzle |
Chaoqiang |
piece |
Based on usage |
Wuxi Chaoqiang Weiye Technology Co., Ltd |
Sample
It can be used for welding aluminum 1.0mm-4 mm, stainless steel 1.5 mm-6.0 mm,
carbon steel 1.5 mm-6.0 mm, galvanized sheet 1.2 mm-5.0 mm, etc
