Fiber Laser Cutting Machine
The fiber laser cutting machine adopts the advanced technology of Cypcut control system to ensure the stability and reliability of the machine; Raytools automatic laser head; high-precision Taiwan square rail, high and stable machine performance.
Send Inquiry
Product Description
Fiber Laser Cutting Machine advantage:
Industrial heavy-duty steel structure and CNC 5 axis machining center to ensure accuracy and stability.
Imported servo drive system and imported motor reducer, fast running speed and strong stability.
Taiwan guideway and high precision grinding rack are used to ensure the long-time processing accuracy of the equipment.
Professional laser cutting system with complete functions and simple operation.
Imported servo drive system and imported motor reducer, fast running speed and strong stability.
Taiwan guideway and high precision grinding rack are used to ensure the long-time processing accuracy of the equipment.
Professional laser cutting system with complete functions and simple operation.
Technical Paramaters：
|
Machine model |
CX1530 fiber laser cutting machine (CX1325 CX2030,CX2040 optional) |
|
Working area |
1500*3000mm |
|
Controller system |
Cypcut laser controller |
|
Laser head |
Raytools cutting head |
|
Water chiller |
CW2000 water chiller |
|
Guide rail |
Taiwan HIWIN 30mm square rail |
|
XYZ axis motor |
Japan Yaskawa/FUSHI servo motor |
|
Oil system |
Electric oil filing system |
|
Out put power |
500w fiber source(1000w 2000w 3000w optional) |
|
Max moving speed |
80m/min |
|
Max cutting speed |
20m/min |
|
Cutting thickness |
0.2-3mm stainless steel/0.2-6mm carbon steel |
|
Laser wavelength |
1064nm |
|
Working voltage |
380v 50/60HZ 3phase |
|
Proportional valve |
Japan SMC |
|
Electronic element device |
Japan Omron |

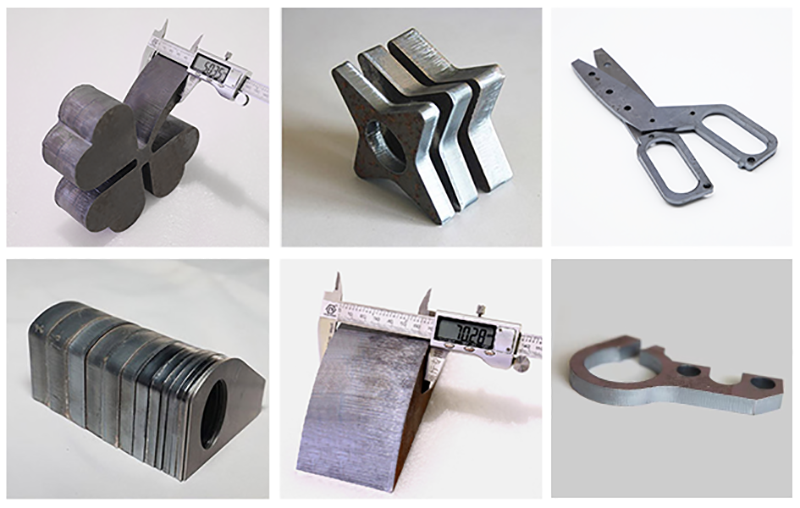

Fiber laser cutting machine Application:
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel , Mild Steel Plate(tube), Carbon Steel, Alloy Steel Plate, Spring Steel, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
