Tube Laser Cutting Machine

Tube Laser Cutting Machine is mainly used for cutting carbon steel, stainless steel, copper, aluminum and other metal materials. It can process round, square, rectangular, oval and other special-shaped pipes. It adopts precision-grade dual pneumatic chucks, automatically locates the center, and is equipped with a high-precision servo deceleration system. Bevel cutting and automatic loading and unloading devices are optional to save labor costs and improve cutting efficiency.

Model:LT6，LT9, LT12

Send Inquiry

Product Description

Description of Tube Laser Cutting Machine:

Optical fiber tube laser cutting machine is mainly used for processing round, square, rectangular, oval and other special-shaped tubes. Cutting carbon steel, stainless steel, copper, aluminum and other metal materials.

CNC Tube Laser cutting machine features:

1. It can process round, square, rectangular, oval and other shaped tubes.
2. Precision-grade double pneumatic chucks, automatic positioning center, with high-precision servo reduction system to meet customers' daily needs.
3.Optional bevel cutting, automatic loading and unloading device, saving labor cost and improving cutting efficiency.

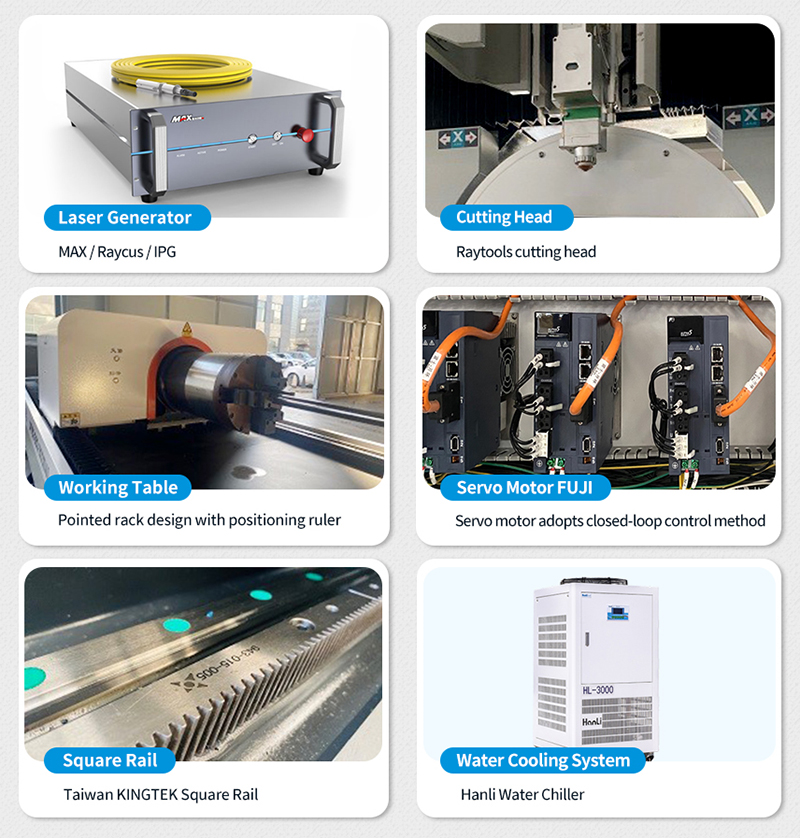

Detail Image:

Technical Paramaters:

Model	LT6	LT9	LT12
Effective tube cutting length	6200mm	9200mm	12000mm
Effective tube cutting diameter	10-230mm
Power	1000W-6000W
Laser source	MAX/IPG
Laser head	Raytools auto-focus laser head
Control system	Cypcut Control system
Chuck drive types	Pneumatic chuck
Electronic Components	[Japan] SMC
Servo Motor and driver	[Japan] Fuji
Speed Reducer	[Japan] Beitto
Guide Rail	[Taiwan] HIWIN
Gears, Racks	[Taiwan] YYC
Water Chiller	Hanli
Positioning accuracy	0.05mm
Repositioning accuracy	0.03mm
Max. chuck rotating speed	100r/min

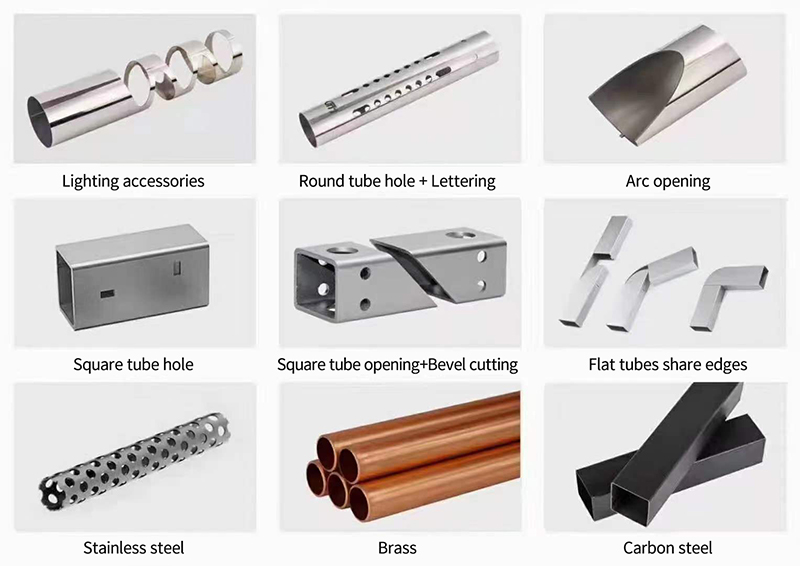

Fiber laser metal tube cutting machine Application:

1.Cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, shipbuilding and other industries.silver, Titanium and other metal plate and tube.
2.Advertising signs, logo making, decorative products, production of advertising and a variety of metal materials. It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates , metal plates.
