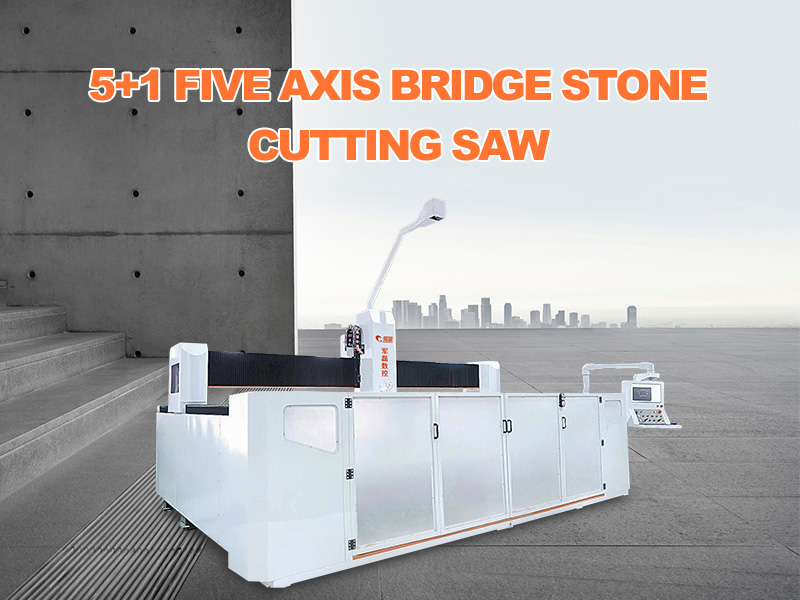

              5+1 Five Axis Bridge Stone Cutting Saw

              Superstar 5 axis bridge cutting saw is used for cutting and engraving Marble, artificial stone, rock plate. The head can turn 360 degrees. The Platform can be lift up 85 degree, more easy for loading stone plate. Spindle motor 24,000 rpm speed, can drilling square holes, round holes and other shapes. This saw can cut by 45 degrees, cross cut, any shapes cut. With the suction moving plate, you can moving large plate easily and also do multi size processing.

              Model:CX-3220

              Send Inquiry

              Product Description

              Product Feature:

              1. This machine is made of heavy materials, with a solid bed, which is durable and does not deform. The whole machine is processed by a large five-sided milling machine for guide rail surface and drilling.

              2. It adopts imported high-precision ball screw transmission. The screw is more wear-resistant after high heat treatment, and the service life of the whole machine is extended.

              3. This equipment has high-end configuration, the machine adopts servo control, fast running speed and stable operation.

              4. The head can swing 360 degrees at will, and the plate can be cut at any angle and any shape. The saw blade motor is added. The head can automatically mill the cutter after being vertical, and the internal angle can be opened.

              5. The function upgrade has added the functions of automatic board movement and automatic optimization of layout

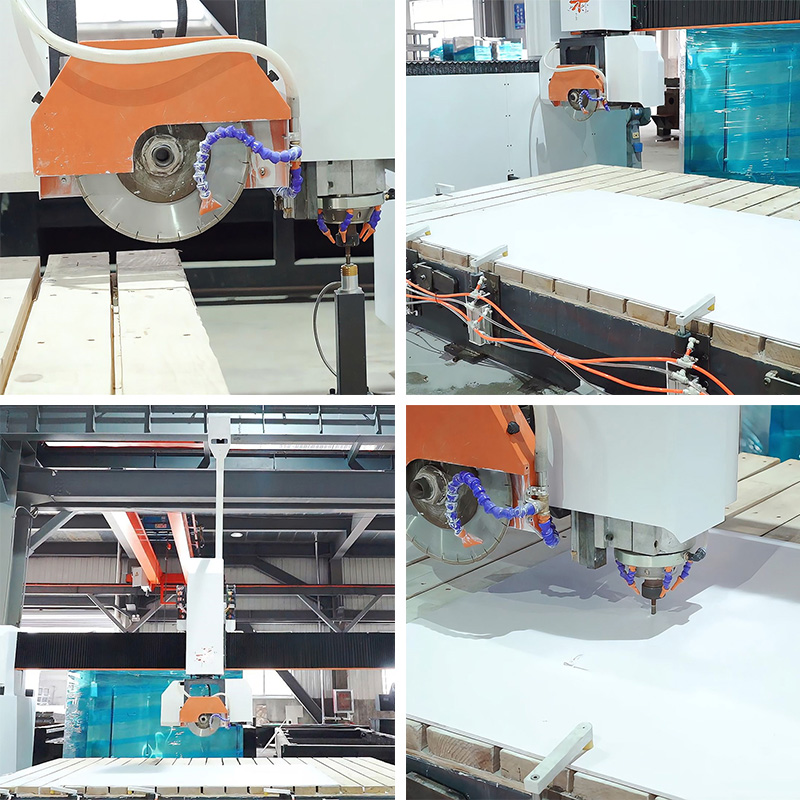

              Detail Image:


              Specification:

              Model

              5+1 Five Axis Bridge Cutting Saw

              Processing Size: X-axis travel

              Horizontal size 3200mm

              Processing Size: Y-axis travel

              Vertical size 2000mm

              Saw Blade Diameter

              350mm

              Bed

              Seamless welding, aging treatment, five-sided milling machine processing

              Surface Treatment

              High temperature spraying to prevent paint from falling off

              Cutting Thickness

              Within 50mm

              Control System

              Upgraded to the latest intelligent 5+1 system (Shanghai Weihong)

              Platform Flap Angle

              0-85 degrees

              Head Rotation Angle

              0-360 degrees

              Head Tilt Angle

              Any angle within 0-90 degrees

              Head Motor Attached

              7.5KW stone-specific spindle

              Cutting Motor

              Special 15KW cutting motor, waterproof and high temperature resistant

              C-axis Structure

              Hollow reducer

              Cutting Speed

              1-2500mm/mim according to stone thickness

              Machine Camera

              Special CNC industrial camera

              Transmission Mode

              High wear-resistant widened square rail + imported high-precision ball screw

              Drive Mode

              High-precision servo control of key parts/angle tilt high-torque servo motor

              Tabletop

              Hydraulic, thickened wooden table,

              Programming Mode

              Directly modify data in the operating system

              Oil Filling Mode

              Automatic oil injection and lubrication

              Toolbox

              One saw blade, wrench, wearing parts

              Packaging

              Plastic packaging (wrap film pearl cotton)

              Dimensions

              Length 6100mm width 3230mm height 2530mm

              Body Weight

              4000kg

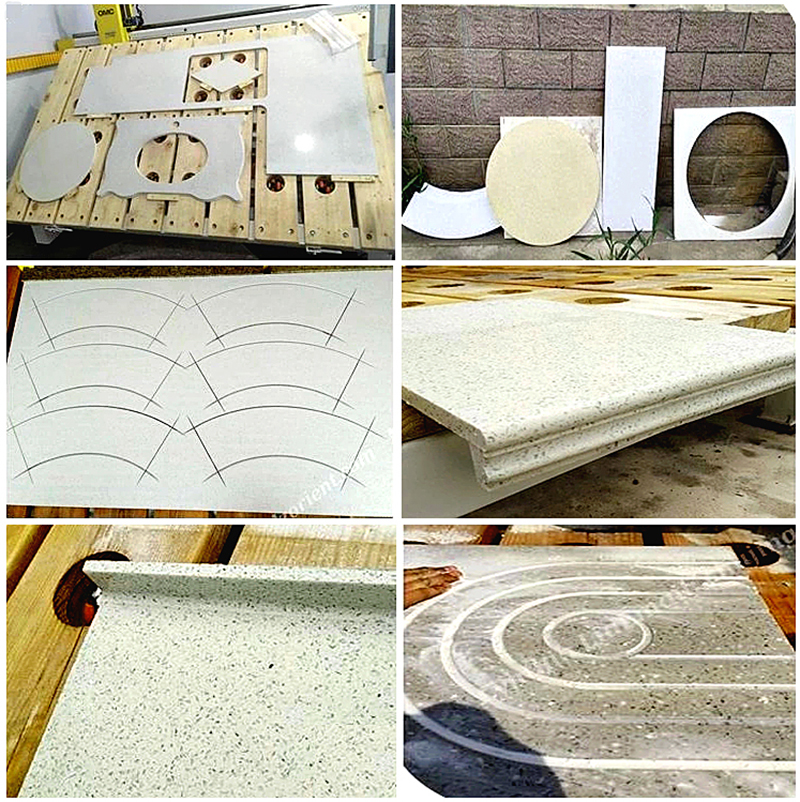

              Sample:

              Full automatic five axis infrared bridge cutting machine, multi language conversion, table processing by one machine, x-y-z-a-b five axis linkage, more widely used, simple operation and stronger practicability.

              Used for cutting, chamfering, edge grinding, slotting, drilling, circular arc and other special-shaped processing.
