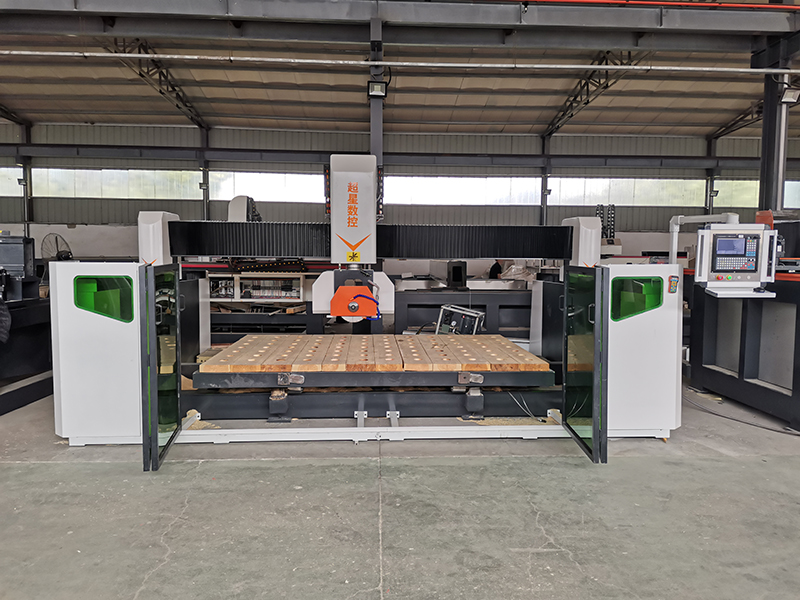

3220 Five Axis Bridge Stone Cutting Machine
This stone machine is five axis bridge cutting machine. This stone cnc with a machine head that can freely swing 360 degrees and cut the board at any angle and shape. The workbench is flipped 85 degrees for easy loading and unloading. Easy to operate, the control system can input data. Adopting a five axis CNC system for operation, precision servo drive, fast speed, and high precision. Infrared positioning, precise cutting, and reduced waste generation.
Model:CX-3220
Send Inquiry
Product Description
Product Feature
1. The machine head can swing 360 degrees freely, and the plate can be cut at any angle and shape
2. It can be used for cutting large plate, 45 degree chamfering, pot hole, stove hole and oblique line cutting
3. The platform is turned over at 85 degrees to facilitate loading and unloading.
4. The operation is simple and the control system can input data.
5. Equipped with grinding wheel device, it can polish the table face and cutting surface.

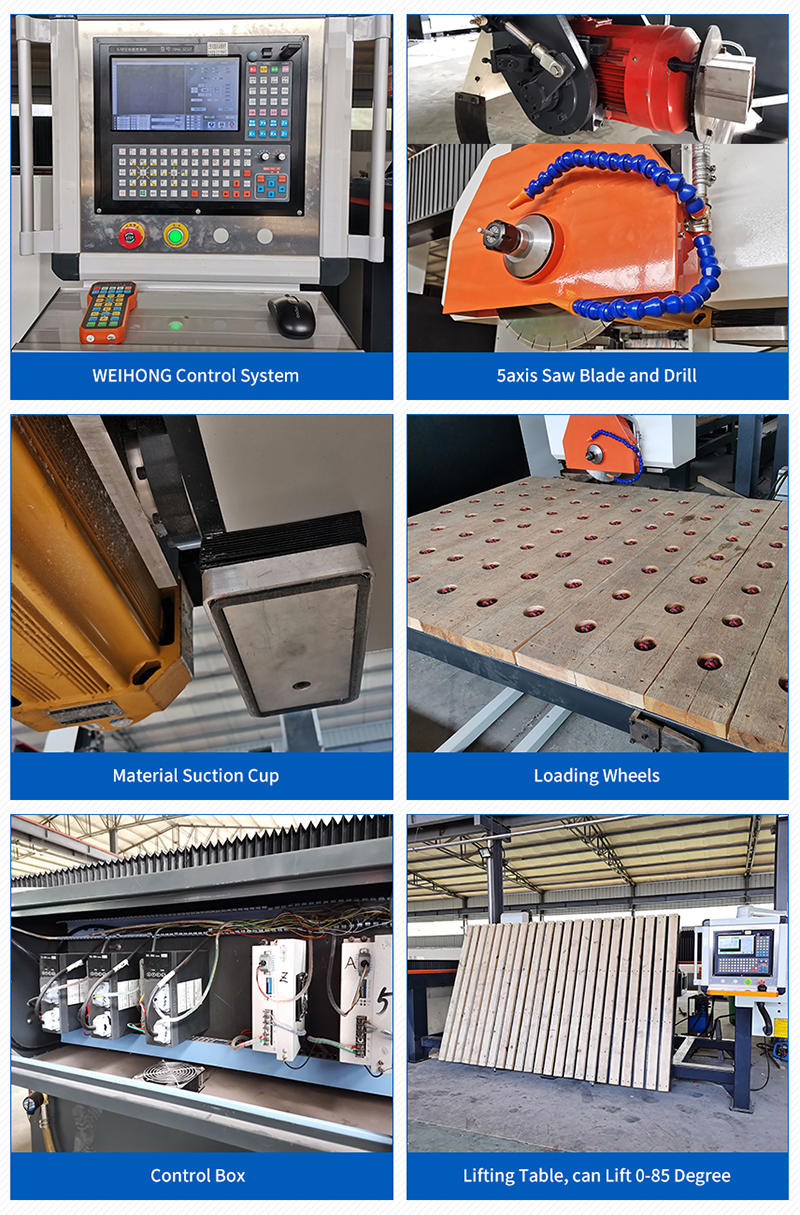

Detail Image:
Specification:
|
Model |
CX-2030 |
|
X-axis travel |
3200mm(Support customized) |
|
Y-axis travel |
2000mm |
|
Saw blade diameter |
700mm |
|
Bed |
Seamless welding, aging treatment, five-sided milling machine |
|
Surface treatment |
High temperature spraying to prevent paint from falling |
|
Cutting thickness |
Within 200mm |
|
Control system |
Upgraded to the latest intelligent five-axis system |
|
Platform flap angle |
0-85 degrees |
|
Head rotation angle |
0-360 degrees |
|
Head tilt angle |
Any angle within 0-90 degrees |
|
Cutting motor |
Specialized cutting motor, waterproof and high temperature resistant |
|
Cutting speed |
1-2500mm/mim according to stone thickness |
|
Transmission mode |
High wear-resistant widened square rail + imported high-precision ball screw |
|
Drive mode |
Key parts high-precision servo control/angle tilt high-torque servo motor |
|
Table |
Hydraulic, thickened wooden table, added universal wheel |
|
Programming mode |
Directly modify data in the operating system |
|
Oil filling mode |
Automatic oiling and lubrication |
|
Tool box |
One saw blade, wrench, vulnerable parts |
|
Packaging |
Plastic packaging (wrap film pearl cotton) |
|
Dimensions |
Length 6100mm width 3230mm height 2530mm |

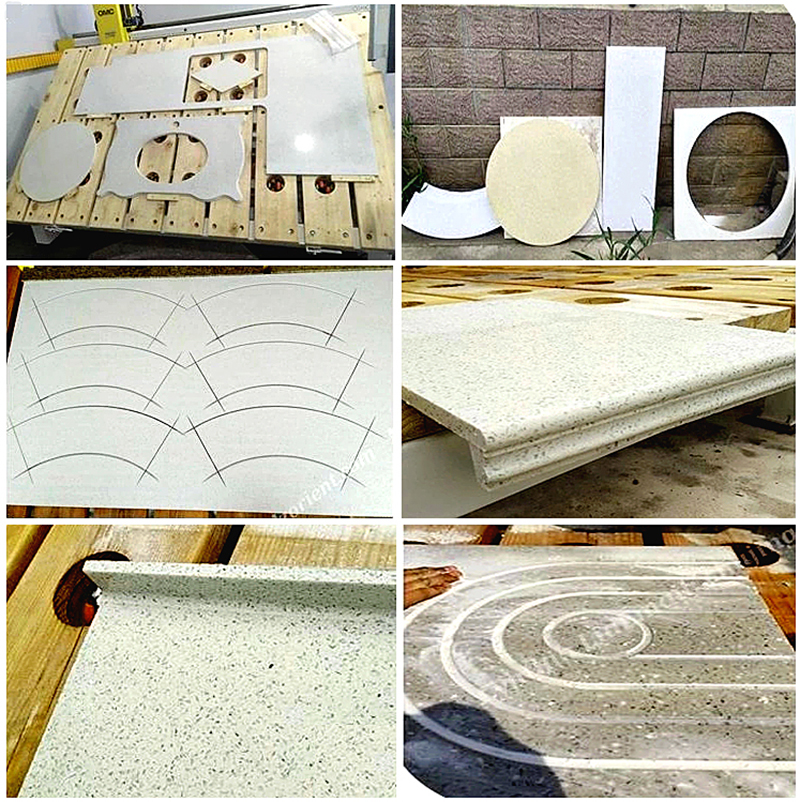

Can process slate, marble, artificial stone, granite and other stone materials.
