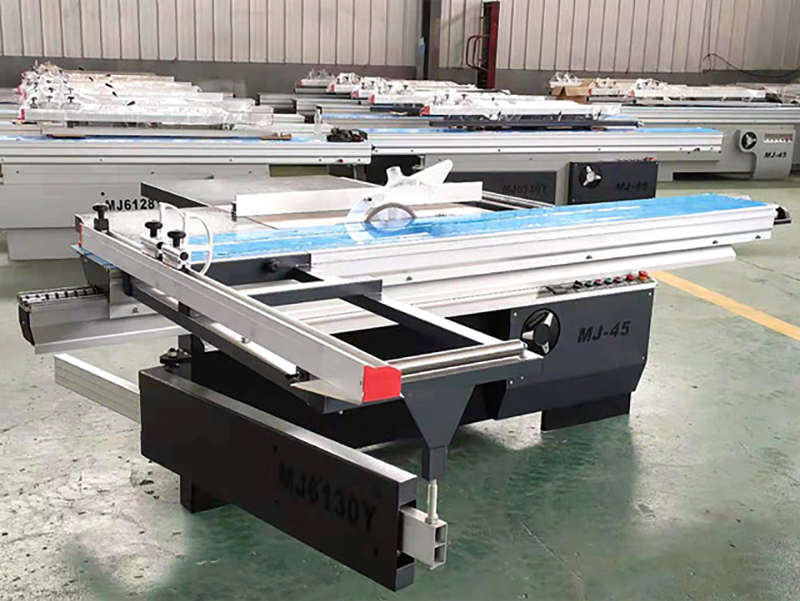

Panel Saw

The panel saw adopts an electric lifting saw blade for easy operation; the high-precision steel guide rail is super-hardened to ensure the accuracy and durability of the guide rail; it can perform 45-degree and 90-degree plate cutting. Used in MDF, acrylic, aluminum cutting, etc.

Model:MJ-6130

Send Inquiry

Product Description

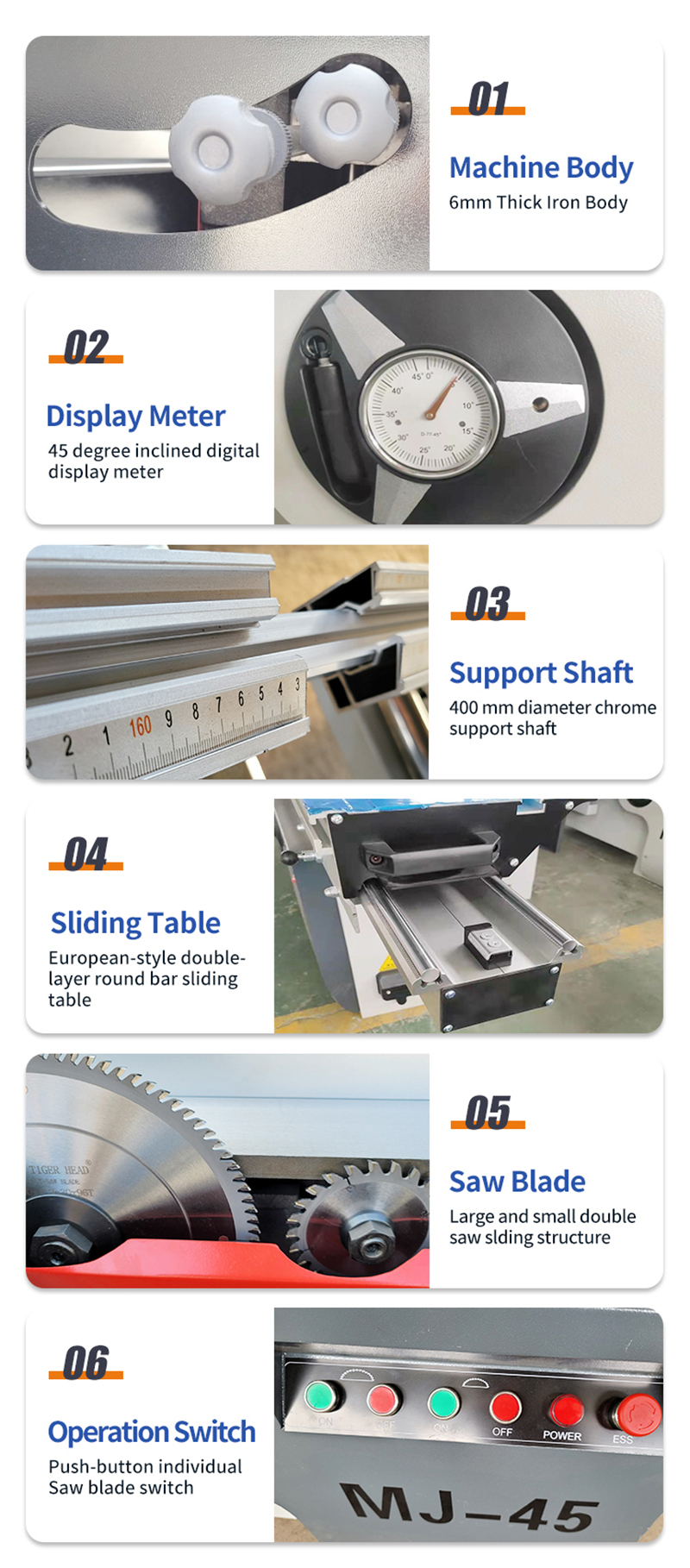

Sliding Table Panel Saw Feature：

1.45 /90 degree lift panel saw，easy to use
2.Double thickened round bar chrome rail
3.Electric lift, digital display function
4.Panel saws with high precision, smoothness and long service life
5.We can supply different types of cutting board saws

Technical Parameters：

MJ-45
Dimension of sliding table	2800*375mm	Main motor power	4kw
Cross cut capacity	2800mm	Scoring saw blade diameter	120mm
width of cut between saw blade and rip fence	1250mm	Speed of scoring saw blade	8000
Saw blade diameter	300mm	Scoring spindle diameter	20mm
Height of cut	80mm	Scoring motor power	0.75kw
Speed of main saw spindle	4500/6000	New weight	650kg
Main spindle diameter	30mm	Overall dimensions	28002600950mm
Scoring motor	30mm	0.75kw	0.75kw

Sliding Table Panel Saw Application:

This table saw is mainly used for longitudinal sectioning, cross-section or angled sawing of plywood, particleboard, fiberboard, veneer, laminated board, blackboard, spliced solid wood board and plastic board to obtain a board that meets the specifications.

Suitable for furniture factory, board factory, construction industry, etc.
