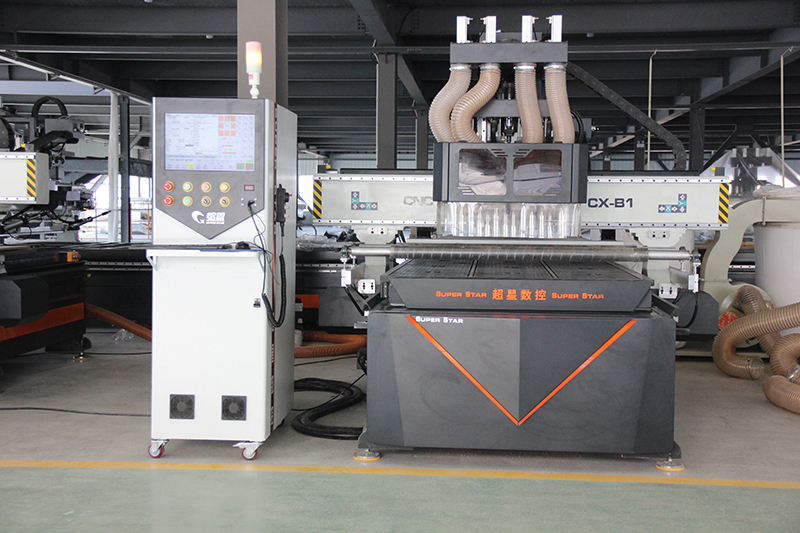

Multi Head CNC Router Machine
The Multi Head CNC Router Machine adopts Taiwan LNC control system and 4.5KW and 6KW fast cutting spindles, and the heavy-duty frame runs stably. Mainly used in panel furniture processing.
Model:CX-B1
Send Inquiry
Product Description

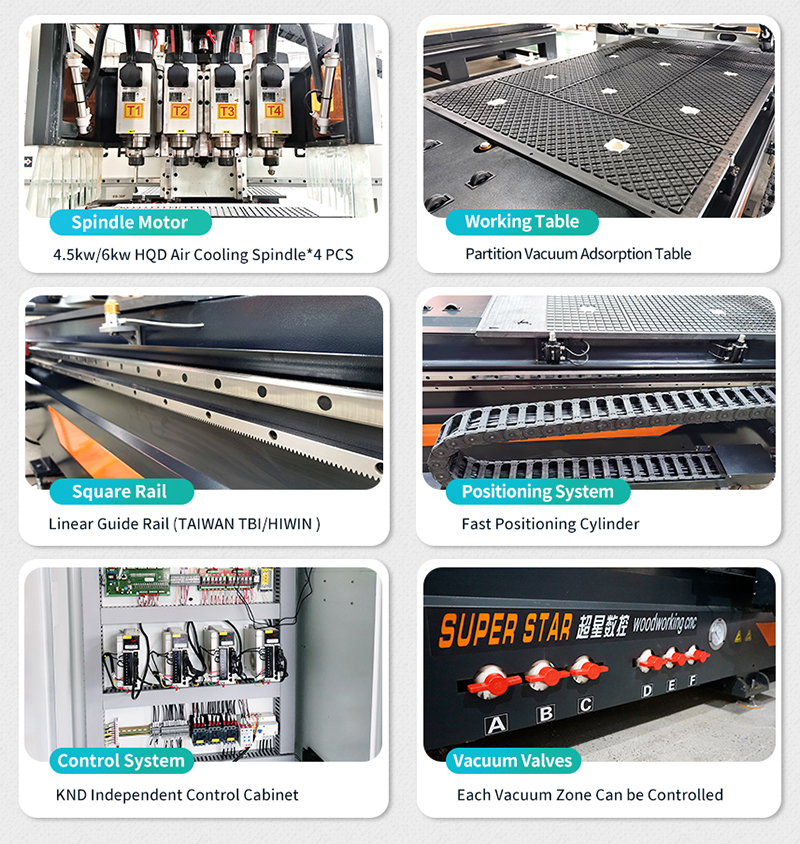

Multi Head CNC Router Machine Feature:
1. The whole bed is welded by seamless steel structure, tempering and aging treatment, with strong rigidity and no deformation.
2. Taiwan linear square guide,smooth operation,, double screw with high precision and precision cutting.
3. Original air cooling spindle 6kW and 4.5kw and the cutting intensity is large.
4. With independent cabinet, separate keyboard operation,easy to learn, and flexibly grasp the use of equipment.
5. With vacuum equipment and the six zoning vacuum adsorption table is specially designed for the soft material, such as density plate. Remove wood chips and froth, keep the worktable clean and maintain the equipment indirectly.
2. Taiwan linear square guide,smooth operation,, double screw with high precision and precision cutting.
3. Original air cooling spindle 6kW and 4.5kw and the cutting intensity is large.
4. With independent cabinet, separate keyboard operation,easy to learn, and flexibly grasp the use of equipment.
5. With vacuum equipment and the six zoning vacuum adsorption table is specially designed for the soft material, such as density plate. Remove wood chips and froth, keep the worktable clean and maintain the equipment indirectly.
Technical Paramaters:
|
Product model |
CX-B1 |
|
XYZ working area |
1300mm*2500mm*200mm |
|
Control System |
Taiwan LNC2200 controller system |
|
Guide rail |
25 Square rail (TAIWAN TBI/HIWIN ) |
|
Spindle |
2*4.5kw+2*6kw HQD air cooling spindle |
|
Spindle Speed |
0--18000rpm/min |
|
Working motor&driver |
Leadshine servo motor&driver |
|
Traveling Accuracy |
±0.05mm |
|
Positioning Accuracy |
±0.05mm |
|
Table Surface |
vacuum table with vacuum pump |
|
X,Y ,Z Structure |
XY axis gear wheel,Z axis ball screw |
|
Max. Rapid Travel Rate |
45000mm/min |
|
Max. Working Speed |
25000mm/min |
|
Working voltage |
AC 380V/50HZ |
Applicable industry:
Application areas of our cnc wood four processing router machine:
Three-dimensional wave board processing, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft window processing, shoe-shoes, game consoles and panels, mahjong tables,
computer tables and auxiliary processing of panel furniture products.
Three-dimensional wave board processing, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft window processing, shoe-shoes, game consoles and panels, mahjong tables,
computer tables and auxiliary processing of panel furniture products.
