Edge Banding Machine

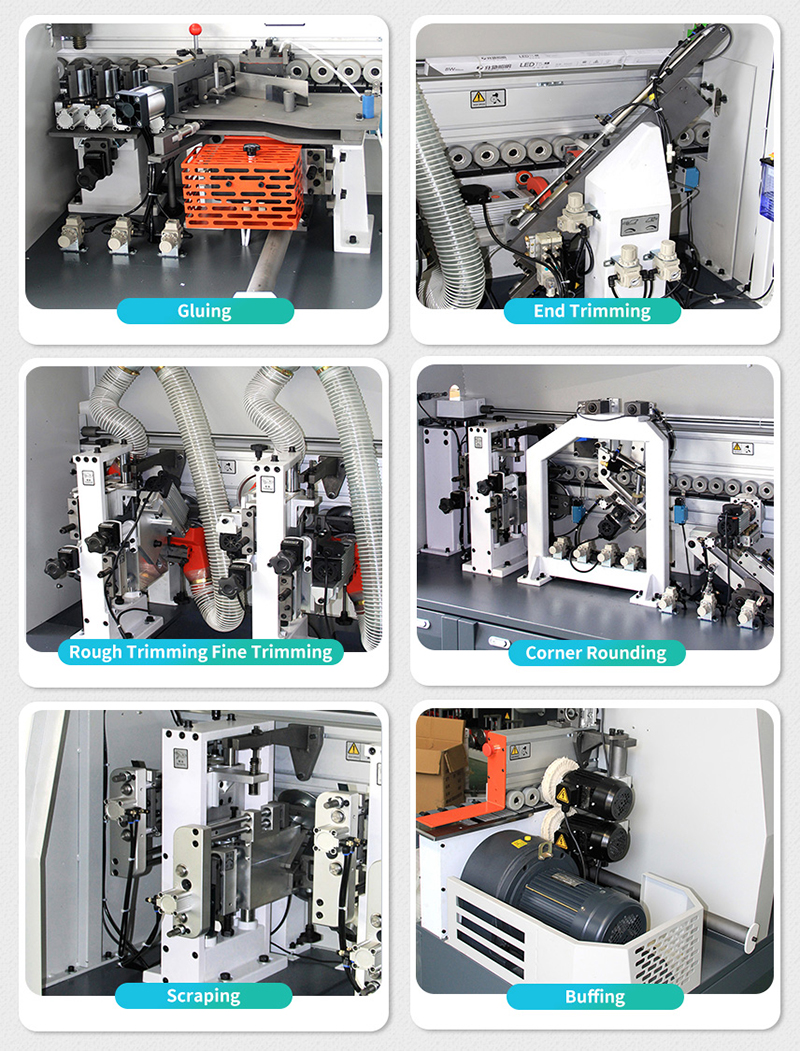

The edge banding machine has 8 functions, buffing, scraping, fine and rough trimming, round edge tracking, end trimming and gluing, and supports automatic flipping and conveying.
Send Inquiry
Product Description
Edge Banding Machine Advantages:
1.Adopt imported motor and high quality electrical component.
2.High precision and work efficiency.
3.Automatic and precise gluing procedure as well as integrated double finish.
4.Glue evenly, conveying stability
2.High precision and work efficiency.
3.Automatic and precise gluing procedure as well as integrated double finish.
4.Glue evenly, conveying stability
Technical Paramaters:
|
Feeding speed |
18-22m/min |
|
Edge Thickness |
0.4-3mm |
|
Panel Thickness |
10-60mm |
|
Panel Length |
Min.120 |
|
Panel Width |
Min.60 |
|
Work pressure |
0.6Mps |
|
Min panel Size |
150(L)*150(w)mm |
|
Motor Power |
12.5kw |
|
Ocerall size |
5760*900*1560 |
|
Weight |
2500kg |
Edge banding machine application:
Edge banding machine in woodworking is used in banding edge of desks,carbinet,wardrobe and stright line furniture.The edge bander can be PVC,melamine,wood based works and so on,with powerful fuctions as edge feeding,sticking,material cutting,front-back trimming.
Edge banding machine is used to cover the exposed sides of materials such as plywood, particle board or MDF, giving the appearance of a solid material.
Edge banding machine is used to cover the exposed sides of materials such as plywood, particle board or MDF, giving the appearance of a solid material.
