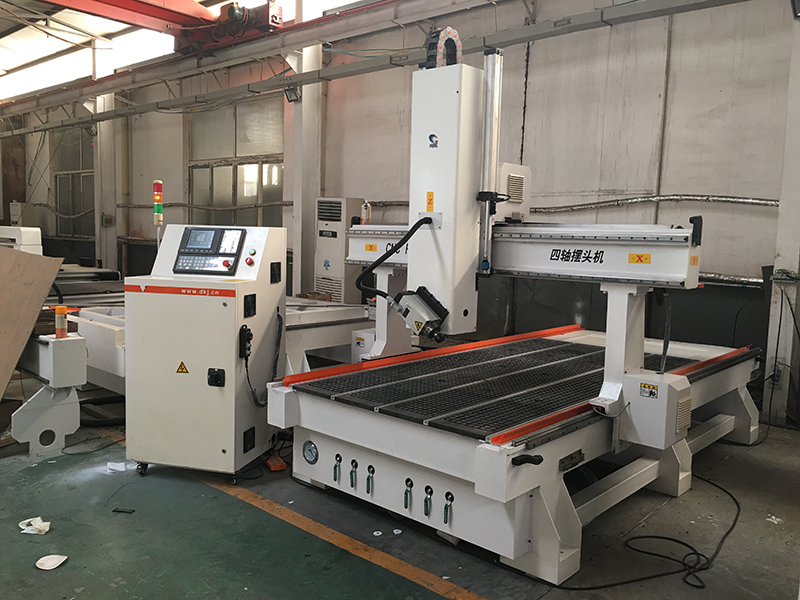

Wood Spindle Rotary Model Carving Machine

The Wood Spindle Rotary Model Carving Machine adopts 9.0KW HSD Italian air cooling, which has a long life and low noise. Taiwan TBI 25 size square rail, fast running speed and strong bearing capacity. The vacuum adsorption table is adopted, which has a large suction force and can absorb small pieces of materials. It is suitable for wood, stone, dragon foam, various non-metallic materials, engraving various small and medium-sized non-metallic molds, special-shaped workpieces and other precision products.

Model:CX-1325,CX-1530

Send Inquiry

Product Description

Wood Spindle Rotary Model Carving Machine Features:

* KND control system
* Servo driver and motor
* Taiwan Square rail,High precision
* Vacuum table,can suck small pieces of material

Specification:

Description	Parameter
X Y Z axis working area	1300mm2500mm450mm
Guide rail	TBI square rail
Spindle	9.0KW ltaly air cooling
Transmission way	helical gear reck for XY axis, ball screw for Z axis
Machine accuracy	±0.05mm
control system	Beijing KND servo motor made in China
Machine table	Vacuum table
Driving system	servo drive and motor

Applicable industry:

Wood, stone, dragon foam, as well as various non-metallic materials, carving all kinds of small and medium-sized non-metallic mold, special shape workpiece and other precision products.
