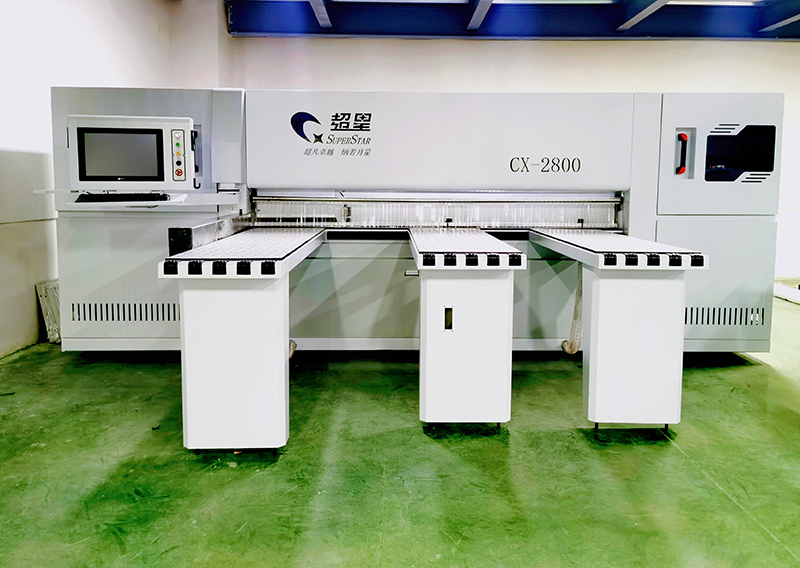

Beam Saw
The beam saw adopts imported Delta servo motor to improve the processing accuracy. According to the input plate width, it can cut out the required plate and quickly return to the original working state. Computerized panel saw without load sensor, dual servo control, more stable cutting. Feeding adopts pneumatic floating bead platform, which is convenient for replacing thick sheets. Can be widely used in precision casting in furniture factories, electrical appliances factories, clothing factories, toy factories, hardware factories, etc.
Send Inquiry
Product Description

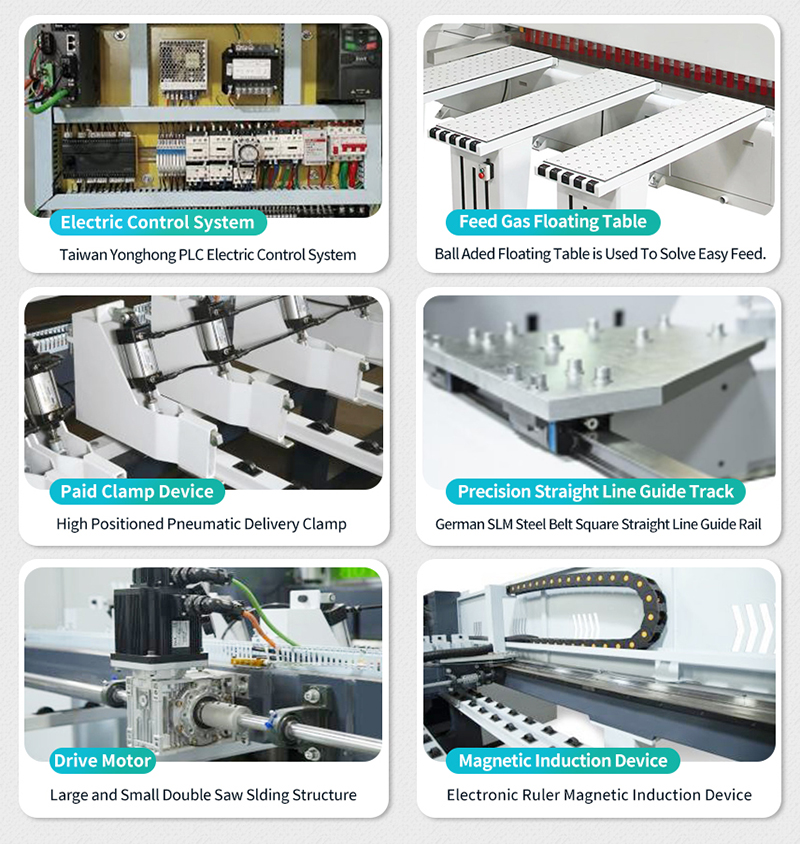

Beam Saw Feature：
1.The moving of saw can adopt gear rack driving way
2.Process flexible two fingers structure,the smallest plywood reaches 20mm
3.panel saw without loading transducer,double servo control,more cutting stability;
4.Use imported Delta servo motor to eliminate artificial error and improve dimensional accuracy
5.Equipped with online fault detection device,and has automatic detect function and remote maintenance support.
2.Process flexible two fingers structure,the smallest plywood reaches 20mm
3.panel saw without loading transducer,double servo control,more cutting stability;
4.Use imported Delta servo motor to eliminate artificial error and improve dimensional accuracy
5.Equipped with online fault detection device,and has automatic detect function and remote maintenance support.
Specification:
|
Total installed power |
22.5kw |
|
Vertical cut |
2600MM /3300mm/3800mm |
|
Maximum saw cut thickness |
90MM |
|
Horizontal cut |
2750MM /3300mm/3800mm |
|
Location mode |
voluntarily |
|
Positioning accuracy |
±0.2mm |
|
Main saw sub-saw motor power |
16.5KW |
|
Main saw outer diameter |
350/380mm |
|
Main saw inner diameter |
30mm |
|
Motor speed |
5100r/min |
|
Power of traction motor |
1.5KW |
|
Servo motor |
2.0KW |
|
Air float high pressure fan |
2.2kw |
|
The outer diameter of the secondary saw |
180mm |
|
The inner diameter of the secondary saw |
25.4mm |
|
Saw cut speed |
100M/min |
|
Opening speed |
120M/min |
|
Air pressure |
0.6-0.7MPA |
|
Machine tool shape size |
5050mm*5100mm1900mm |
|
5550mm*5100mm*1900mm |
|
|
6050mm*5100mm*1900mm |
Applicable Industry:
Plexiglass, light guide plate, circuit board, large core board, MDF board, wood-based board, artificial stone, aluminum-plastic board, MDF board, MDF, flower board, ABS board, PVC board, PS board, PET board, Grating plate, artificial leather, synthetic stone, solid wood and other materials are used. It can also be used to cut hardboards such as gypsum board and laminate flooring.
